lugaVista unit

Vennligst velg

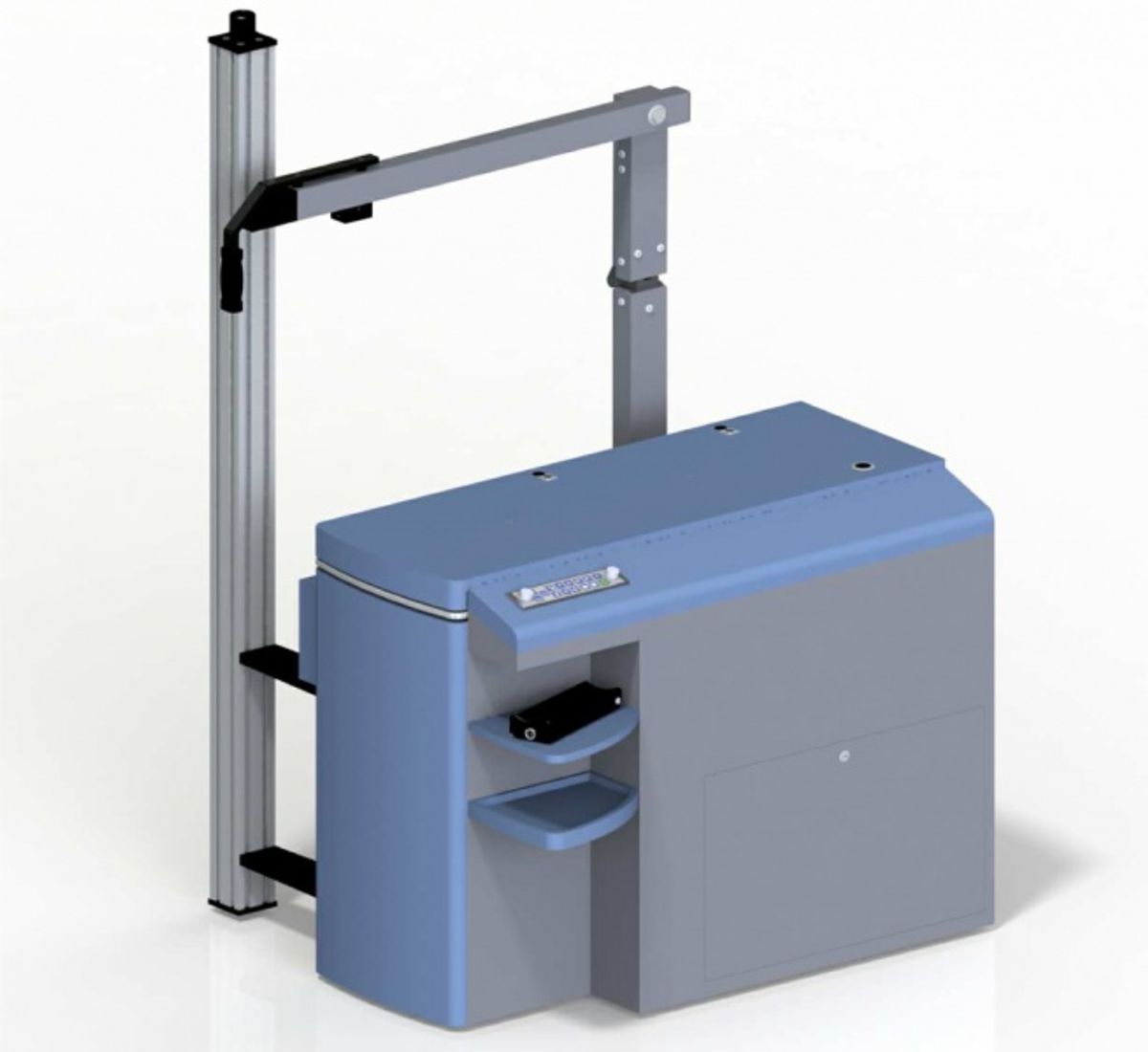

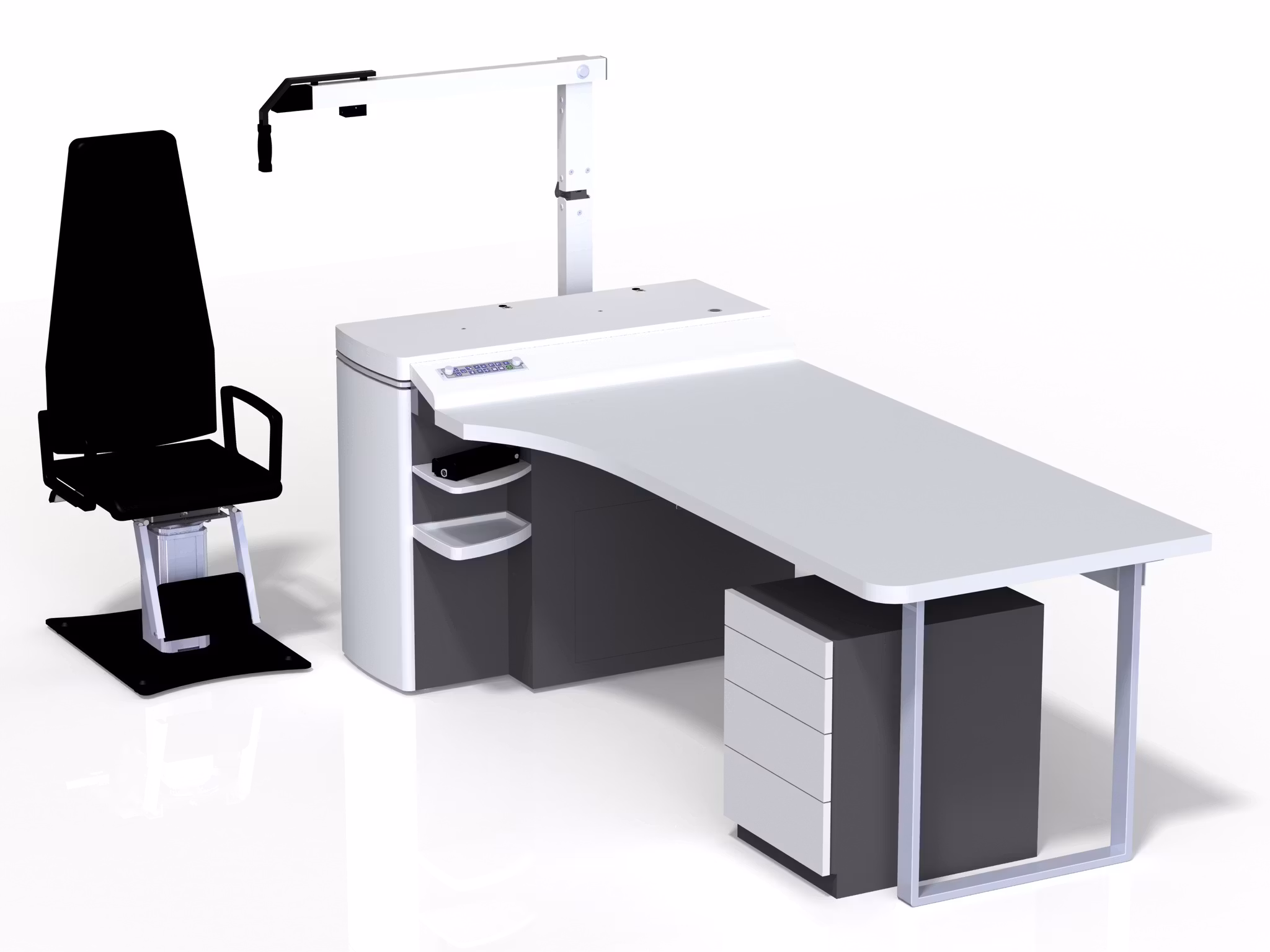

lugaVista - Technics And Design On A Raised Standard

Flexible solutions and sophisticated implementing, in a bodywith a modern styling – lugaVista represents all options of acontemporary refraction unit.

The graceful and modern Design of this well thought outrefraction unit represents the eyecatcher in each examinationarea. The sophisticated, compact construction is revalued byequally useful and practical characteristics. Groundbreakingelectronics as well as high quality mechanics are wellorchestratedand allegorize the centrepiece of this artful device.

A wealth of features broaden the range: with or without theinnovative height adjustment, with projector column orphysiological phoropter arm, lugaVista offers unlimitedopportunities of options. And, in any case, the suitable stylingcorresponds to the additional furnishing components bydesigning the surfaces individually. Each surface ismanufactured on customer's request

With its modular and customer-specific conception, lugaVistaprovides the realisation of all ideas.

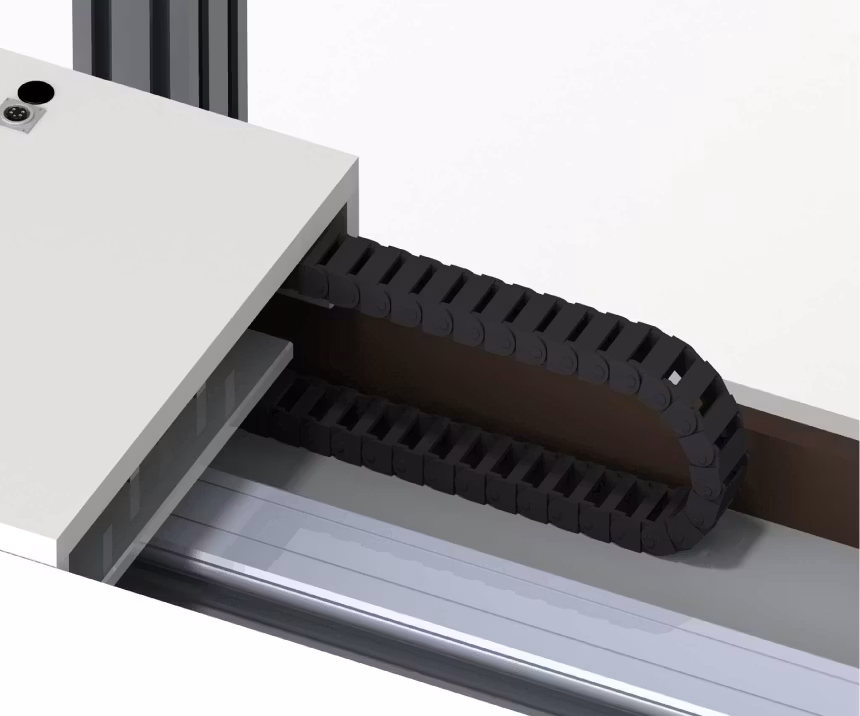

The cable dragchain is integrated withoutsurcharge into the equipment table. It uniteshigh-quality Design and functional security ofadditionally deployable equipment cables.



The optionally available inclinable phoropter arm– only one of many details in our ergonomic totalconcept.

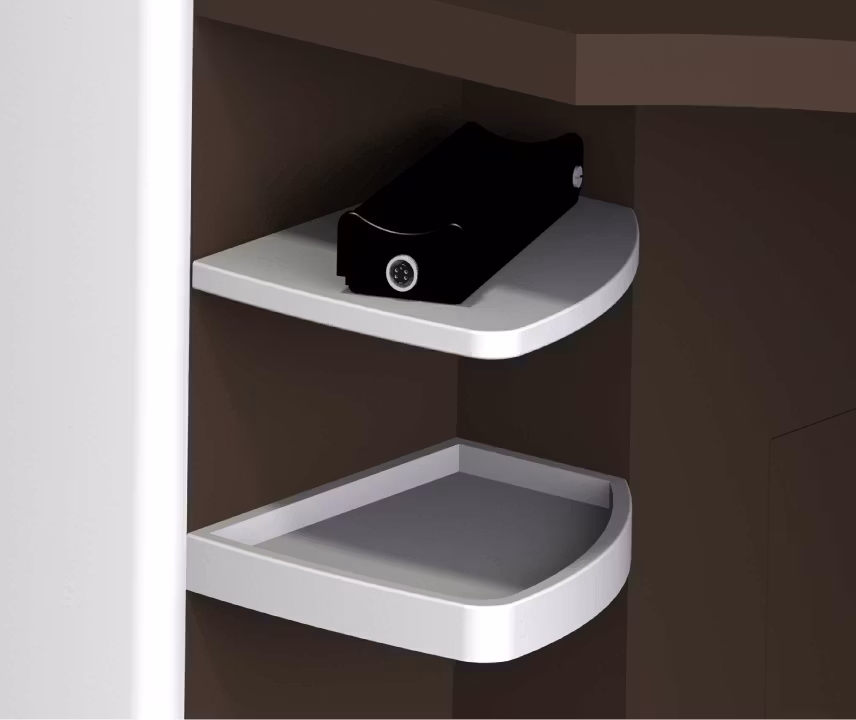

The optionally available shaft tray is equippedwith switchable contacts. During the use of thehand-held equipment the tension is switched onautomatically and the interior light is dimmed on apleasant brightness. Beyond that the equipment

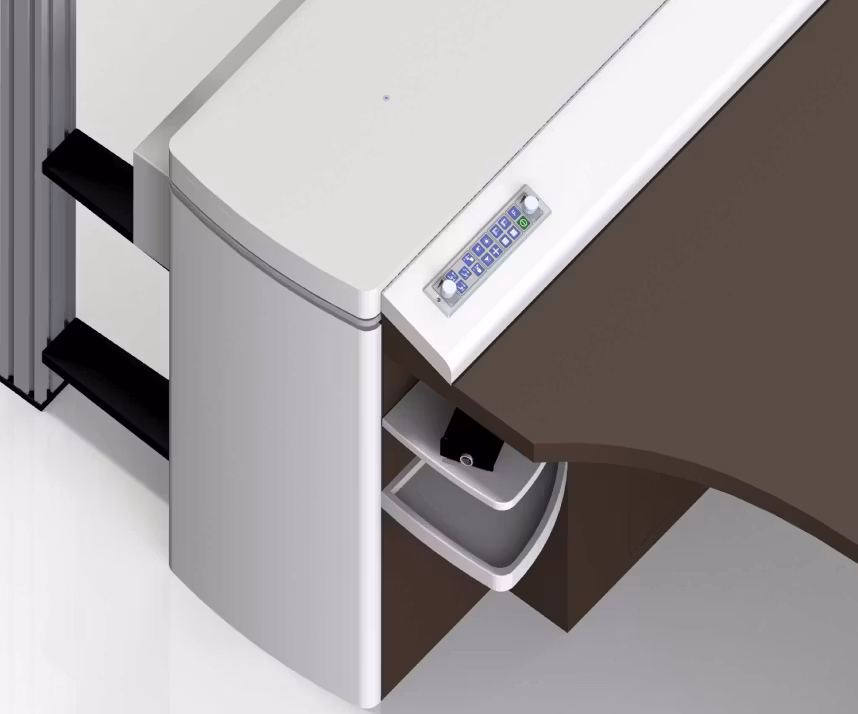

The keyboard "MCT-15" can be user-friendlyintegrated into the desk or installed at therefraction unit. The optionally available keyboard"MCT-22" makes an extended operation possible.

Tekniske spesifikasjoner

Bredde: 1095 mm

Høyde: 870 mm

Dybde: 400 mm

Vekt: 190-240 kg

Nenneingangsspannung / nominal input voltage: 110-240V, 50-60Hz

Schutzanforderung / protection requirements: EMVG DIN EN 60601-1-2

Schutzklasse / protection class: MPG 1

Schutzart / protection type: IP 20

Leistungsaufnahme / power input: max. 1450W
