pendelVista - simple, robust, long-Living

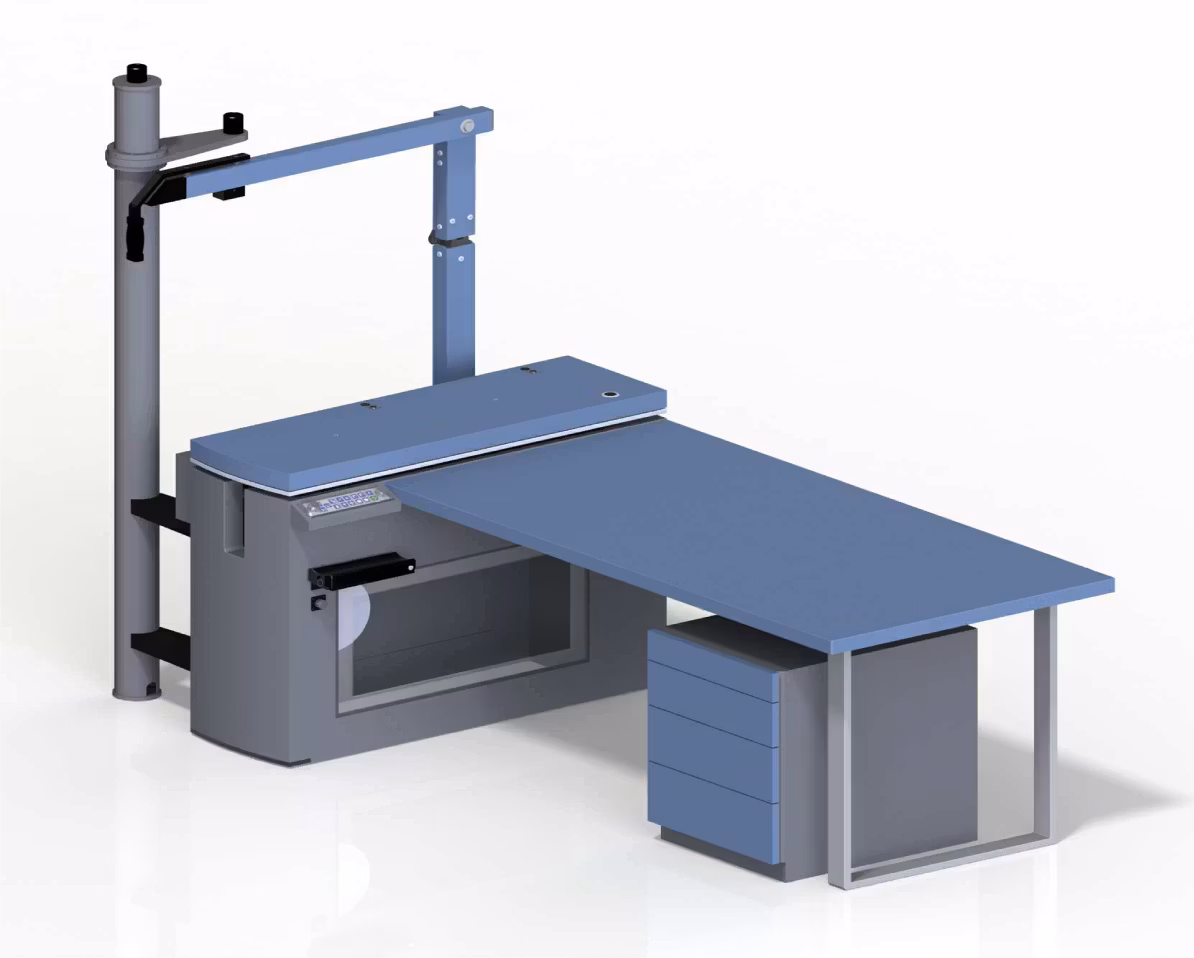

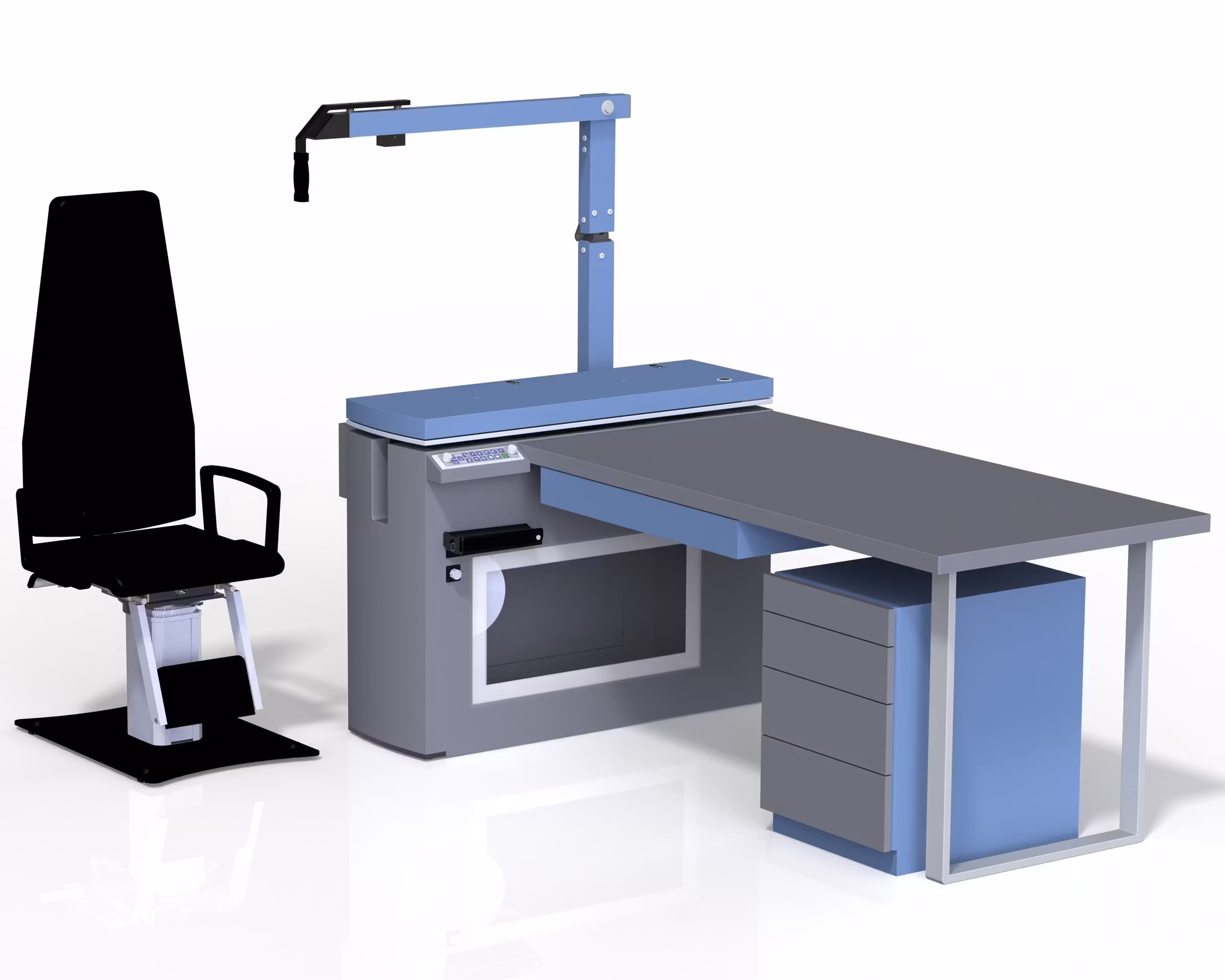

This exceptional pendulum unit is functional, easy to useand captivates by its light and modern design. With oneor two instrument positions, pendelVista convinces ofquality and individuality.

The unit is endowed by a robust pendulum mechanics,and also can be delivered visibly and even illuminated, ifrequested. Its counterweight is justified very easily, sofine-tuning of every configuration of optical devices isensured.

The 14-pushbutton keyboard, optionally inserted in adesktop with commodious drawer, upgrades thisextraordinary examination unit, as well as options like themotor-powered phoropter arm, the well-designedprojector stand or the stylish reading light.

In Switzerland, where it is widely distributed already,pendelVista rates as "the refraction unit on a highlevel"…

The robust pendulum mechanics is exceptional,long-living and high-quality designed as well.

The optionally available inclinable phoropter arm– only one of many details in our ergonomic totalconcept.

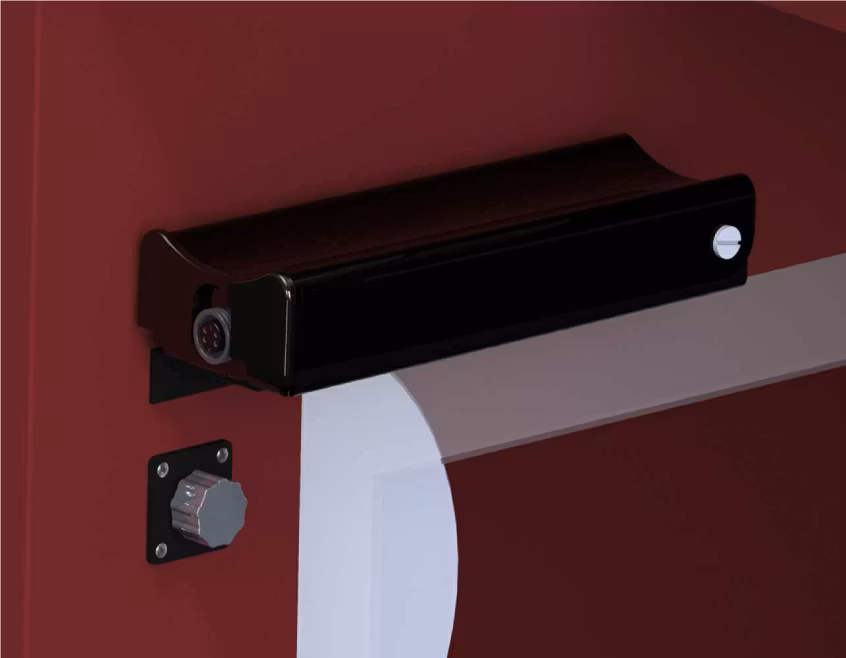

The optionally available shaft tray is equippedwith switchable contacts. During the use of thehand-held equipment the tension is switched onautomatically and the interior light is dimmed on apleasant brightness. Beyond that the equipment

The keyboard "MCT-15" can be user-friendlyintegrated into the desk or installed at therefraction unit. The optionally available keyboard"MCT-22" makes an extended operation possible.

Tekniske spesifikasjoner

Bredde: 1080 mm

Høyde: 845 mm

Dybde: 350 mm

Vekt: 200 kg

Nenneingangsspannung / nominal input voltage: 110-240V, 50-60Hz

Schutzanforderung / protection requirements: EMVG DIN EN 60601-1-2

Schutzklasse / protection class: MPG 1

Schutzart / protection type: IP 20

Leistungsaufnahme / power input: max. 1450W
